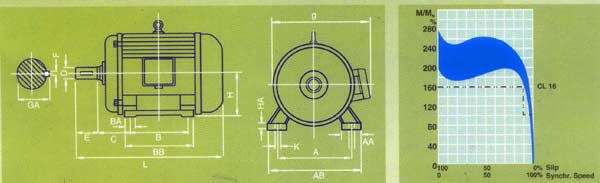

Mechanical Dimensions of Standard Flange Mounted Totally Enclosed Fan Cooled Motors.

Frame
A
B
C
D
E
F
GA
H
K
L
HA
AB
BB
BA
AA
g
56
90
71
36
9
20
3
10.2
56
7
195
8
111
89
20
26
109
63
100
80
40
11
23
4
12.5
63
7
206
10
127
96
22
32
115
71
112
90
45
14
30
5
16
71
7
235
11
137
120
29
32
139
80
125
100
50
19
40
6
21.5
80
10
280
11
156
127
29
34
206
90 S
140
100
56
24
50
8
27
90
10
300
13
172
132
32
37
218
90 L
125
320
150
100 L
160
140
63
28
60
8
31
100
12
365
14
202
172
38
58
250
112 M
190
140
70
28
60
8
31
112
12
385
15
230
175
50
62
295
132 S
216
140
89
38
80
10
41
132
12
445
18
260
180
40
66
335
132 M
178
485
220
160 M
254
210
108
42
110
12
45
160
15
595
20
310
254
70
65
430
160 L
254
630
300
180 M
279
241
121
48
110
14
51.5
180
16
770
25
340
300
80
60
460
180 L
279
810
340
200 L
318
305
133
55
110
16
59
200
20
760
26
380
370
85
80
540
225 S
356
286
149
60
140
18
64
225
19
825
30
430
355
100
85
530
225 M85
311
850
380

Note :

  1. Ref. : IS : 1231-1974.
  2. Lifting Eye Bolt Provided for Frame Size 100 L and above.
  3. Terminal Box for Frame Sizes 63 and 71 provided on Top only.

Out Put kW at Speeds

Frame 3000 1500 1000 750
56 0.09 0.09
63 0.18 0.12
0.25 0.18
71 0.37 0.25 0.18
0.55 0.37 0.25
80 0.75 0.55 0.37 0.25
1.10 0.75 0.55
90 S 1.50 1.10 0.75 0.37
90 L 2.20 1.50 1.10 0.55
100 L 3.70 2.20 1.50 0.75
      1.10
112 M   3.70 2.20 1.50
132 S 5.50 5.50 3.70 2.20
132 M 7.50 7.50 5.50
160 M 9.30 9.30 7.50 3.70
11.00 11.00   5.50
160 L 15.00 15.00 9.30 7.50
    11.00
180 M 18.50 18.50
180 L 22.00 22.00 15.00 9.30
      11.00
200 L 26.00 26.00 18.50 15.00
30.00 30.00 22.00
37.00
225 S 37.00 37.00   18.50
225 M 45.00 45.00 30.00 22.00



Conversion Table

kW Hp
0.09 0.12
0.12 0.16
0.18 0.25
0.25 0.33
0.37 0.5
0.55 0.75
0.75 1
1.1 1.5
1.5 2
2.2 3
3.7 5
5.5 7.5
7.5 10
9.3 12.5
11 15
15 20
18.5 25
22 30
26 35
30 40
37 50
45 60
55 75
